Inhmelhriattirna

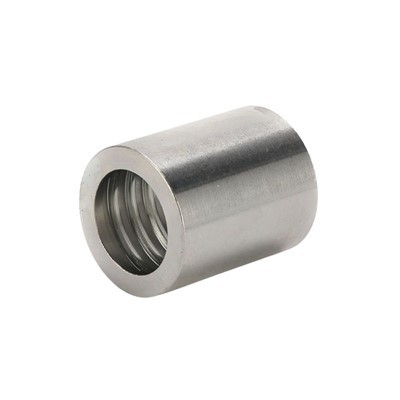

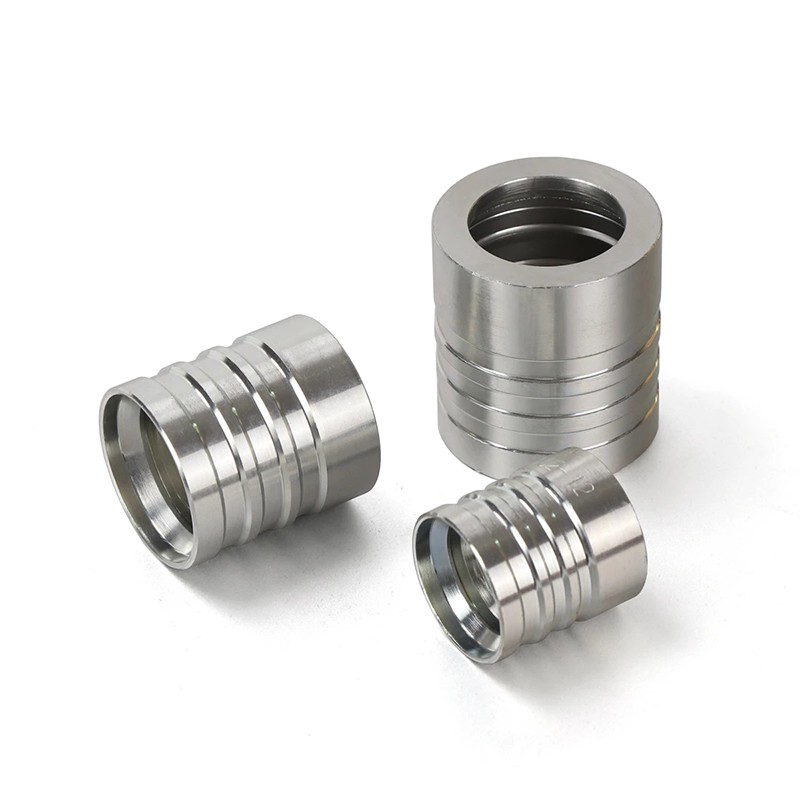

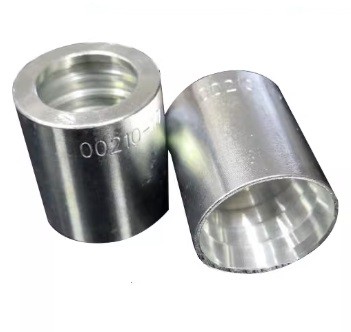

Hydraulic pipe ferrule fittings hi hydraulic system-a secure, leak-proof, leh vibration{2}}resistant hose leh pipe assembly atana siam performance connection components a sang-performance connection components a ni. Heng fittings te hian ferrule sleeve hmangin high-pressure application-a fluid transfer rintlak tak siam thei tur crimp chak tak, permanent tak a siam thei a ni.
Specifications 1.1.
|
part no. |
Hose Bore 1000 a ni. |
Dimension hrang hrang . |
||
|
DN 10 a ni. |
THEH |
D |
L |
|
|
00621-12 |
20 |
12 |
40 |
53 |
|
00621-16 |
25 |
15 |
49 |
66 |
|
00621-20 |
32 |
20 |
60 |
88.5 |
|
00621-24 |
40 |
24 |
69.4 |
102 |
|
00621-32 |
50 |
32 |
86.5 |
108 |
Parameters/technical data a awm em?
|
Dik tak |
China ram Zhejiang-ah chuan a awm a. |
Delivery ni . |
Negotiable a ni a . |
|
Certification 1000 a ni. |
GB/T19001-2016 IDT ISO9001:2015 ah hian a awm a. |
Packing a awm em . |
Export standard 100 a ni. |
|
Bungrua |
Carbon steel 1000 a ni. |
Warranty a awm em? |
Kum 1 . |
|
Pawisa pek hun tur . |
TT 10 a ni. |
MOQ 10 a ni. |
2000 |
|
Dinhmun |
Thar |
Rawng |
A rilru a buai em em a, a rilru a hah em em bawk a. |
Company chungchang .
A thatna te .
Connection security danglam bik .
Proprietary triple-Crimp technology hmangin 100% hose retention a awm theih nan a enkawl a ni.
Industry standard aiin 40% zetin pull-out resistance a sang zawk
Zero reported field failures chu 10+ services kum 1999 khan a ni.
Extreme Pressure a thawk tha hle.
Continuous 6,000 psi (414 bar) hmanga hnathawh chhunzawm zel tur a ni.
Burst pressure chu 24,000 psi (1,655 bar) aia tam a ni.
Seal integrity chu 1M+ pressure cycle hmangin a vawng reng a ni.
Precision Engineering lama thiamna sang tak nei .
CNC-steel billet lem atanga siam (±0.0005" tolerance)
Micro-Polished sealing surface (ra < 0.4μm) a ni.
Optimized flow path hian turbulence chu 25% in a tihtlem a ni.
Material technology hmasawn tak tak .
A rilru a buai em em a, a rilru a hah em em bawk a. 4130 chrome-Moly steel standard
316L Stainless Steel option (5x corrosion resistance) a awm bawk.
Extreme environment hrang hrang atan special alloys a awm bawk.
Vibration & Shock do theihna a awm em?
MIL-STD-810G chu boruak chhe tak tak atan certified a ni.
20g vibration load hnuaiah clamp force a enkawl
Special Anti-Mobile hmanrua atana hman tur fatigue design
Installation lama a thatna te .
Laser-Etched size/pressure hriat theihna tur .
Pre-Crimp indicators hmanga siam chhuah a ni.
Inelna nei te aiin 30% in installation a chak zawk
Universal compatibility .
Hose brand lian zawng zawng (Gates, Parker, Eaton) te nen an thawk dun a.
SAE, DIN, JIS, leh ISO standard zawm dan te.
System awmsa nena inthlak danglam theih .
Rigorous quality assurance .
100% hydrostatic pressure test a ni.
Automated Optical Inspection .
Full material traceability .
FAQ a ni.
Q: I ferrule fittings hian eng standard nge a zawm?
A: Kan thil siamte hi an inhmukhawm a:
SAE J514 (O{{1}chu boss a ni)
ISO 8434-1 (37℃flare) a ni.
DIN 2353 (24℃cone) a ni.
JIS B 8363 (Japanese Industrial Standard) a ni.
Q: Eng pressure rating nge awm?
A: Standard pressure class hrang hrangte:
3000 psi (207 bar) a ni a, a man hi a to hle.
6000 psi (414 bar) a sang-Pressure series a ni.
Custom design hrang hrang 15,000 psi (1034 bar) thleng a ni.
Q: Eng material nge pek chhuah a nih?
A: Standard materials: 1.1.
Carbon steel chu zinc-nickel plating nen a inzawm a ni.
304/316 a ni a, a rimtui hle.
Thil pawimawh bik:
Duplex stainless steel a ni.
Inconel 625 a ni.
Titanium Grade 5-na a ni.
Q: Engtin nge fitting size dik tak ka thlan ang?
A: thlan dan tur:
Pipe/hose od leh wall thickness nena inmil tur a ni.
System working pressure ngaihtuah rawh .
Thread type (NPT, BSPP, etc.) te chu a dik leh dik loh enfiah rawh.
Kan engineer te hian a thlawna sizing assistance an pe thin .
Q: Eng sealing method nge awm?
A: Sealing tih theih dan tur:
O-Ring hmai seal (Orfs) .
Metal-to-Metal seal a ni.
Soft seal leh bonded washer te pawh a awm bawk.
Flare seal (37℃/24℃) a awm bawk.
Q: I fittings te hi brand dang nen an inthlak danglam thei em?
A: Ni e, kan fittings:
SAE/ISO Dimensional zawm kim zel tur a ni.
100% chu standard design nen an inthlak thei a ni.
Tolerance-controlled sealing surface te pawh telh bawk ang che.
Q: Custom order atan eng nge i lead time?
A: A siam chhuah hun tur:
Stock Items: Darkar 24 chhunga thawn chhuah
Standard Custom: Hnathawh Ni 5-7
Alloy bik: Kar 2-3 chhung
Emergency atanga thil siam chhuah theih a ni .
Q: Eng installation hmanrua nge mamawh?
A: Hmanraw rawt te:
Standard hydraulic crimping hmanrua te .
A siamtu-Die sets tarlan a ni.
Threaded connection atan torque wrench a awm bawk.
Installation manual pek a ni .
Q: Eng certification nge i vawn reng?
A: Tuna certification awm mekte:
ISO 9001:2015 (QMS) a ni a, a man pawh a tlawm hle.
API Q1 (Oil & Gas) a awm a.
PED 2014/68/EU ah a awm a.
DNV-GL Tuipui lam .
Q: Eng maintenance nge recommend a nih?
A: Invenna enkawlna: 1.1.
Kum tin torque verification .
Biennial seal enfiahna .
Kum 5 chhung atan ultrasonic test a ni.
Pressure cycle 50,000 hnuah thlak danglam a ni
Q: I warranty coverage chu eng nge ni?
A: Kan warranty ah hian:
Kum 10 chhunga hman tur Material Warranty .
Kum 5 chhunga performance guarantee a awm bawk.
Kum 3 chhung seal integrity warranty a awm thei.
(Installation dik tak neih a ngai)
