Inhmelhriattirna

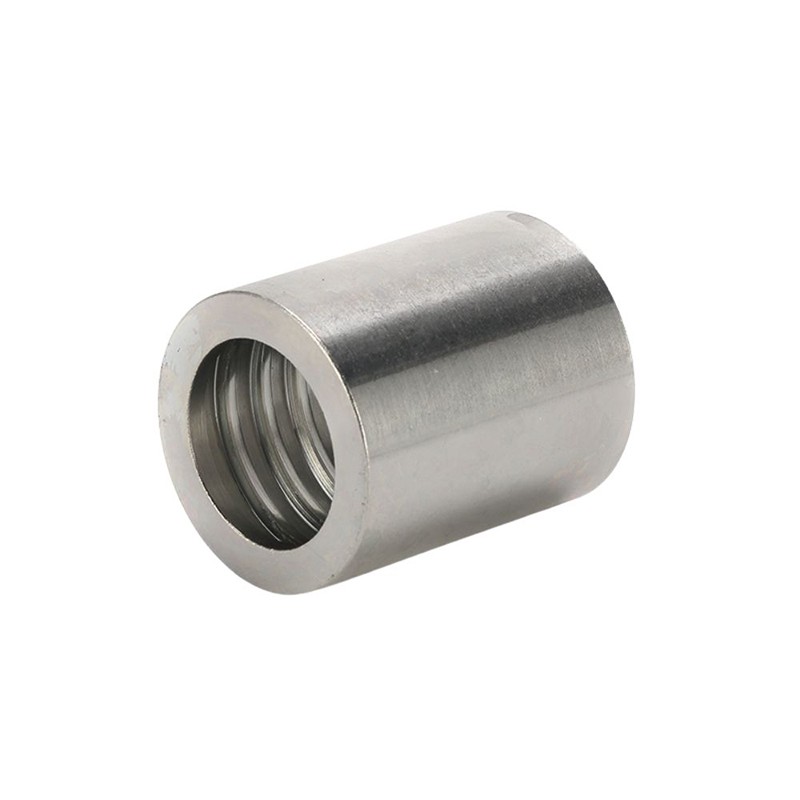

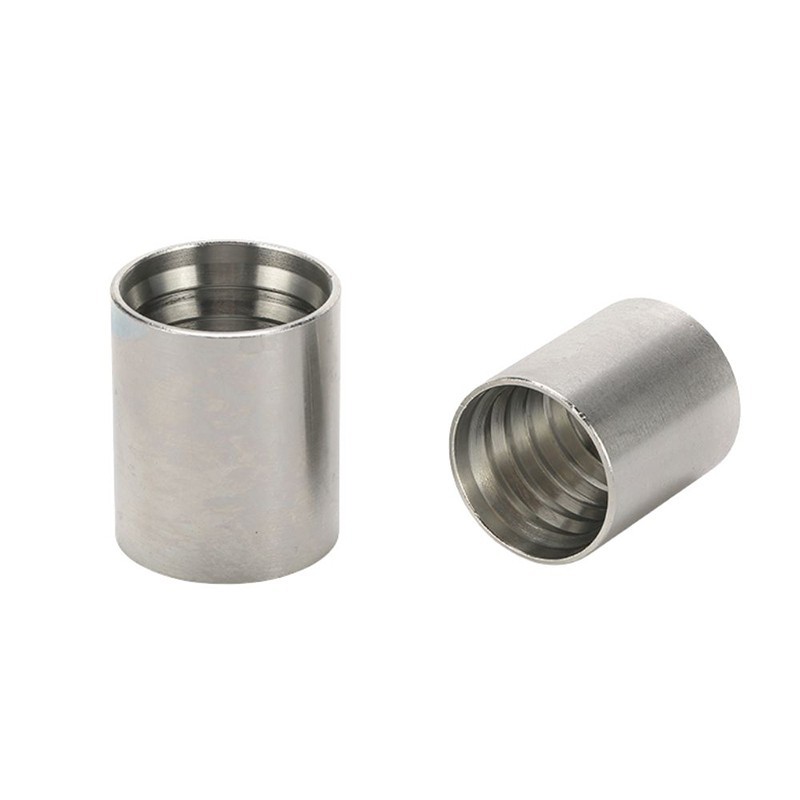

Kan hydraulic socket hian high-pressure fluid system atana connection technology sang ber a entir a ni. International hydraulic standards aia tam siam tura engineered, heng precision components te hian industrial environment mamawh ber berteah rintlakna tluk loh a pe chhuak a ni.
Technical lam thila thil chiang tak tak .
| Thil hman tur . | Chrome-Moly steel (AI 4140) siam a ni a, plating option tam tak a awm bawk. |
| Pressure 1000 a ni. | Standard 6,000 psi (414 bar), high-pressure version 15,000 psi (1,034 bar) thleng a ni. |
| Temperature 1000 a ni. | -65℃F atanga +400℃F (-54℃atanga +204℃) a ni. |
| Size hrang hrang a awm a. | 1/8" atanga 3" (3mm atanga 76mm) thleng a ni. |
| Thread option hrang hrang . | NPT, BSPP, BSPT, JIS, leh metric thread te a awm bawk. |
| Zawm | SAE J1926, ISO 11926, leh DIN 3852 te chu an inhmukhawm a. |
| Surface finish . | 8-16 μin RA mirror finish critical surface-ah a awm. |

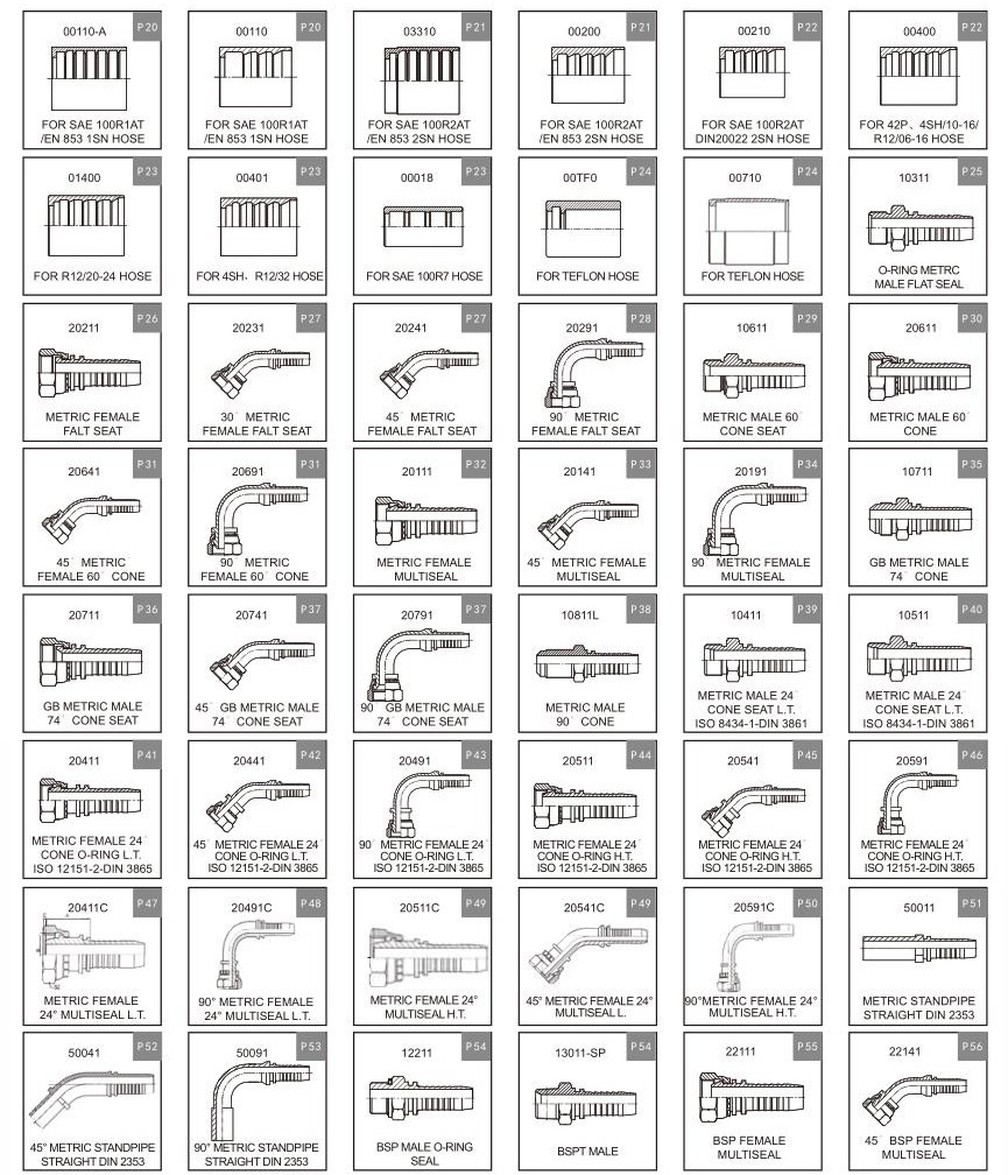

Specifications 1.1.
|
part no. |
Hose Bore 1000 a ni. |
Dimension hrang hrang . |
||
|
DN 10 a ni. |
THEH |
D |
L |
|
|
00018-03 |
5 |
03 |
14.2 |
27 |
|
00018-04 |
6 |
04 |
17 |
29 |
|
00018-05 |
8 |
05 |
18.8 |
31 |
|
00018-06 |
10 |
06 |
21 |
31 |
|
00018-08 |
12 |
08 |
25.5 |
34 |
|
00018-10 |
16 |
10 |
31.5 |
36 |
|
00018-12 |
20 |
12 |
33 |
43 |
Parameters/technical data a awm em?
|
Dik tak |
China ram Zhejiang-ah chuan a awm a. |
Delivery hun tur . |
Negotiable theih a ni . |
|
Certification 1000 a ni. |
GB/T19001-2016 IDT ISO9001:2015 ah hian a awm a. |
Packing a awm em . |
Export standard 100 a ni. |
|
Bungrua |
Carbon steel 1000 a ni. |
Warranty a awm em? |
Kum 1 . |
|
Pawisa pek hun tur . |
TT 10 a ni. |
MOQ 10 a ni. |
2000 |
|
Dinhmun |
Thar |
Rawng |
A rilru a buai em em a, a rilru a hah em em bawk a. |
Company chungchang .
A thatna te .
A chhe thei lo .
High-Tensile alloy steel atanga lak chhuah, stainless steel/brass variant duh duh a awm bawk.
Precision heat-Standard socket aiin fatigue resistance 30% a sang zawk turin enkawl a ni.
Sipai-Grade corrosion laka invenna (zinc-Nicpel plating, electroless nickel options)
Engineering lama thiamna sang tak nei .
Zero-Laser hmanga guarantee guarantee-thread concentricity tehna (±0.01mm tolerance)
Proprietary dual-Seal technology hian metal- to-metal leh elastomeric sealing a hmang dun a ni.
Pressure-A test a, 2.5x working PSI a ni a, full traceability a nei bawk.
Design feature fing zawk a awm bawk.
Anti-Vibration grooves hian mobile equipment-a fitting loosening a veng thei a ni.
Tapered lead-thread-ah chuan hmun tight tak takah blind assembly enable theih a ni.
Color-Coded bands te chu field chhunga instant size hriat theihna tur a ni.
A hman dan-Secific solutions .
Ultra-Damdawi/hydrogen hmanna atana series thianghlim (ASTM BPE zawm thei)
Xtreme line ah hian tungsten carbide coating a awm a, abrasive slurry services a awm bawk.
ATEX-Bognive environment atana certified options .
Khawvel pum huapa zawm .
ISO 18752, SAE J518, DIN 20066-a hman tur a ni.
3.1/3.2 mill certificate neia thil hman tur kimchang documentation a awm bawk.
Nun chhung zawnga senso advantage .
5-Industrial-grade socket zawng zawngah kum warranty a awm vek a ni.
Brand lian tak tak (Parker, Eaton, Manuli) te nen inthlak danglam theih a ni.
Mining/Extreme Duty Cycles-ah 30% rei zawk service life proven a ni.
FAQ a ni.
Q: I hydraulic socket te hian eng standard nge an zawm?
A: Kan socket te hi an inhmu a:
SAE J1926 (O-Ring boss inzawmna)
ISO 11926 (high-Pressure hydraulic fittings a ni)
DIN 3852 (metric thread hmanga inzawmna) .
ASME B31.3 (Process Piping Standards) .
Q: Eng pressure rating nge awm?
A: Standard & High-Pressure option hrang hrang:
Standard: 6,000 psi (414 bar) a ni.
High-pressure: 15,000 psi thleng (1,034 bar)
Custom: Extreme conditions atana engineered solutions .
Q: Eng material nge hman thin?
A: Standard materials: 1.1.
AISI 4140 chrome-steel tha tak (zinc{2}}Nicl plated)
316L Stainless Steel (Marine & Chemical laka inven theihna) a awm bawk.
Special alloys a awm a, chungte chu:
Duplex stainless steel a ni.
Inconel 625 (high-temperature) a ni.
Titanium grade 5 (aerospace-grade) a ni.
Q: Engtin nge socket size dik tak ka thlan ang?
A: Thil pawimawh thlan tur:
Hose/pipe chhung lam diameter (ID) .
System hnathawh pressure .
Fluid nena inmil .
Thread chi hrang hrang (NPT, BSPP, metric, etc.)
Kan engineer te hian free sizing support an pe thin.
Q: Eng sealing method nge awm?
A: Sealing option hrang hrangte chu:
O{{0}Ring Face Seal (ORFS) – a tam ber .
Metal-to-Metal seal – sang-Thil hman dan tur sang tak
Soft seal (Bonded Washers) – Vibration laka inven theihna a ni.
Flared seal (37℃/24℃) – DIN/ISO standard a ni.
Q: Eng certification nge i neih?
A: Tuna certification awm mekte:
ISO 9001:2015 (quality management) .
API Q1 (Oil & Gas Standards) .
PED 2014/68/EU (European Pressure Directive) a ni.
DNV-GL Tuipuiah phalna pek a ni.
Q: Eng maintenance nge mamawh?
A: Invenna enkawlna: 1.1.
Kum tin torque check thin .
Biennial seal enfiahna .
Kum 5 chhung atan ultrasonic test a ni.
Cycle 50,000 hnuah thlak danglam a ni
Q: I warranty policy chu eng nge ni?
A: Industry-a huam chin (leading coverage):
Nun chhung zawnga hman tur warranty .
Kum 10 chhunga performance guarantee a awm bawk.
Kum 5 chhung seal integrity warranty a awm a.
(Installation dik a ngai.)
Q: Material certification i pe thei em?
A: Documentation kimchang awm thei:
Mill Test Reports (MTRS) te chu .
Heat treatment certificate te pawh a awm bawk.
NDE report (UT/MPI/RT) 1.1.
Q: Engtin nge hlawhchhamna awm thei te hi ka hriat theih ang?
A: Vaukhânna chhinchhiahna:
Fluid leakage .
Bolt/fittings tihzauh .
Hmuh theih crack/corrosion .
Vibration/noise danglam tak a ni.
