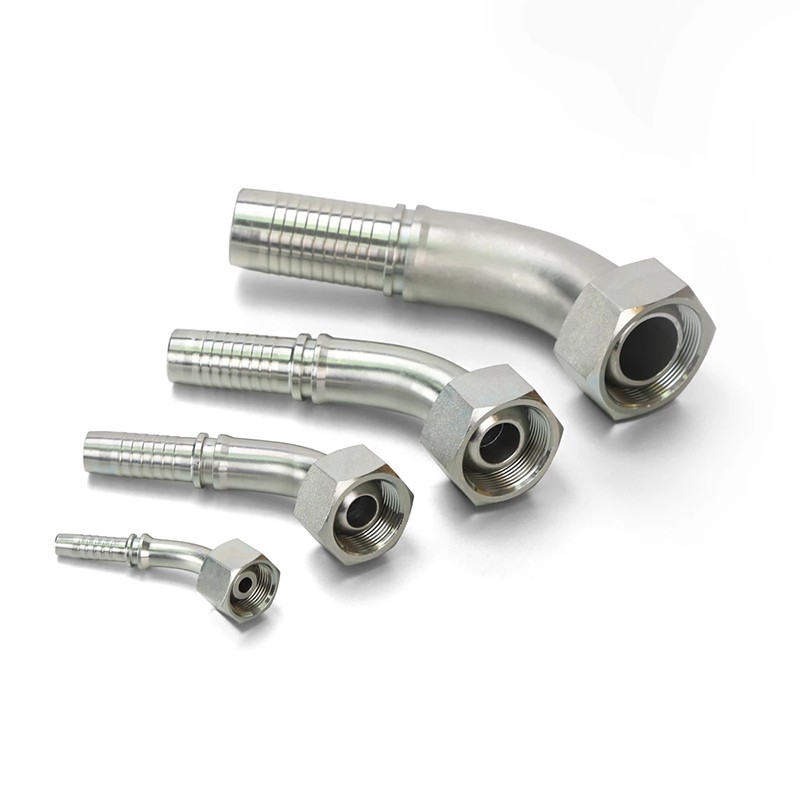

Kan hydraulic hose fitting mipa hi hydraulic application mamawh tak takah chuan secure, leak-proof connections pe turin engineer a ni. Precision threading leh durable materials hmanga design a ni a, he fitting hian industrial, mobile, leh marine hydraulic system-ah rintlak takin a thawk thei a ni.
Specifications 1.1.
|
part no. |
Thread E chu a . |
Hose Bore 100 a ni. |
Dimension hrang hrang . |
||||
|
DN 10 a ni. |

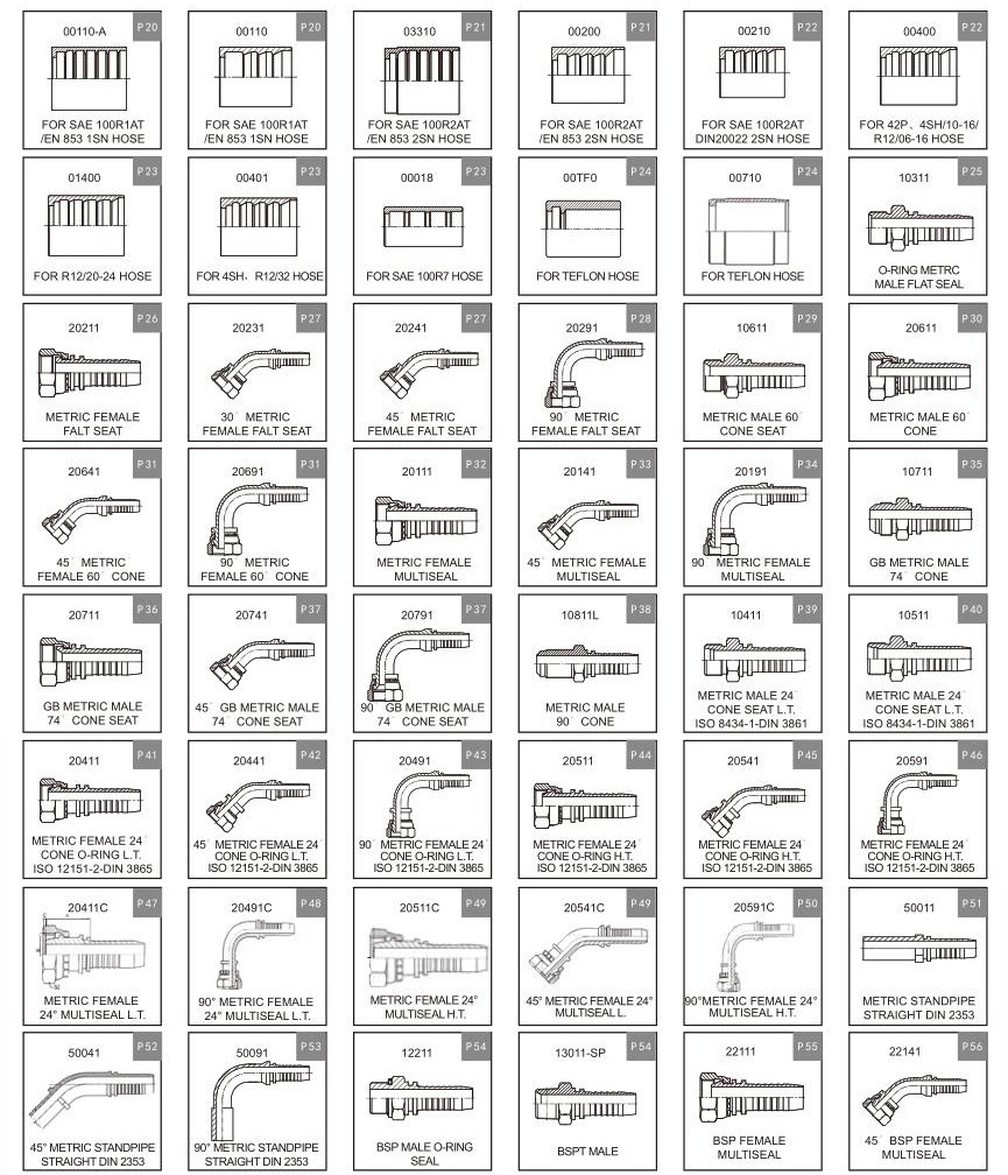

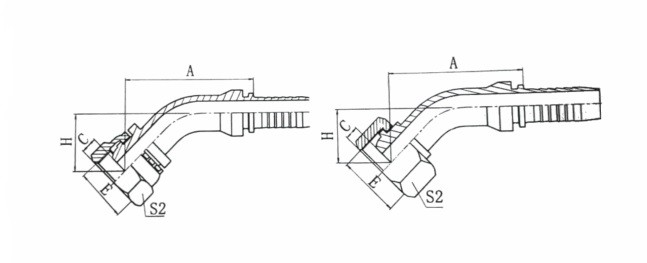

THEH |
A |
C |
H |
S2 |
||
|
20141-10-03 |
M10X1 |
5 |
03 |
41.1 |
2.5 |
20.7 |
14 |
|
20141-10-04 |
M10X1 |
6 |
04 |
43.2 |
2.5 |
21.5 |
14 |
|
20141-12-03 |
M12X1.5 |
5 |
03 |
40.9 |
4 |
21.2 |
17 |
|
20141-12-04 |
M12X1.5 |
6 |
04 |
43 |
4 |
22 |
17 |
|
20141-14-04 |
M14X1.5 |
6 |
04 |
43.4 |
4.5 |
21.3 |
19 |
|
20141-14-05 |
M14X1.5 |
8 |
05 |
45.5 |
4.5 |
22.2 |
19 |
|
20141-16-04 |
M16X1.5 |
6 |
04 |
43.7 |
4.5 |
21.4 |
22 |
|
20141-16-05 |
M16X1.5 |
8 |
05 |
45.8 |
4.5 |
22.5 |
22 |
|
20141-16-06 |
M16X1.5 |
10 |
06 |
47.4 |
4.5 |
24.1 |
22 |
|
20141-18-05T |
M18X1.5 |
8 |
05 |
46.8 |
4 |
22.6 |
24 |
|
20141-18-06 |
M18X1.5 |
10 |
06 |
48.5 |
4 |
24.2 |
24 |
|
20141-18-08 |
M18X1.5 |
12 |
08 |
52.2 |
4 |
25.7 |
24 |
|
20141-20-06T |
M20X1.5 |
10 |
06 |
48.2 |
5.5 |
23.9 |
27 |
|
20141-20-08 |
M20X1.5 |
12 |
08 |
62.1 |
5.5 |
27.2 |
27 |
|
20141-22-06T |
M22X1.5 |
10 |
06 |
58.4 |
5 |
25.7 |
27 |
|
20141-22-08 |
M22X1.5 |
12 |
08 |
62.1 |
5 |
27.2 |
27 |
|
20141-24-08T |
M24X1.5 |
12 |
08 |
61.1 |
5.5 |
26.1 |
30 |
|
20141-24-10 |
M24X1.5 |
16 |
10 |
75.4 |
5 |
29.6 |
30 |
|
20141-27-10DT ah a awm a. |
M27X1.5 |
16 |
10 |
74.4 |
5.5 |
29.6 |
32 |
|
20141-27-10T |
M27X2 |
16 |
10 |
74.4 |
5.5 |
29.6 |
32 |
|
20141-30-12D |
M30X1.5 |
20 |
12 |
80.9 |
6 |
33.5 |
36 |
|
20141-30-12 |
M30X2 |
20 |
12 |
80.9 |
6 |
33.5 |
36 |
|
20141-36-14T |
M36X2 |
22 |
14 |
83 |
7 |
32.64 |
41 |
|
20141-39-16T |
M39X2 |
25 |
16 |
88.2 |
7 |
33.95 |
46 |
|
20141-45-20T |
M45X2 |
32 |
20 |
99.1 |
8.5 |
38.4 |
55 |
|
20141-52-24T |
M52X2 |
40 |
24 |
114.1 |
9 |
43.4 |
60 |
Parameters/technical data a awm em?
|
Dik tak |
China ram Zhejiang-ah chuan a awm a. |
Delivery ni . |
Negotiable theih a ni . |
|
Certification 1000 a ni. |
GB/T19001-2016 IDT ISO9001:2015 ah hian a awm a. |
Packing a awm em . |
Export standard 100 a ni. |
|
Bungrua |
Carbon steel 1000 a ni. |
Warranty a awm em? |
Kum 1 . |
|
Pawisa pek hun tur . |
TT 10 a ni. |
MOQ 10 a ni. |
2000 |
|
Dinhmun |
Thar |
Rawng |
Zinc dum, colour zinc a ni. |
Company chungchang .
A thatna te .
Professional-te’n kan fittings an tarlan chhan:
Industry average aiin 40% in service life a rei zawk
Darkar 72 chhunga emergency production service .
Account lian ber ber zawng zawnga ruat application engineer inpe tak takte .
Real-Customer Portal kaltlangin hun hman theihna hun hman theihna hun
FAQ a ni.
Q: Mipa hydraulic hose fitting tih hi eng nge ni?
A: Mipa hydraulic hose fitting hi hydraulic hose components (eg, pump, valve, cylinder) te nena inzawm tir thei tur connector chi khat a ni. External threads a nei a, chu chuan a inmil hmeichhe-threaded port emaw adapter emaw a screw lut a ni.

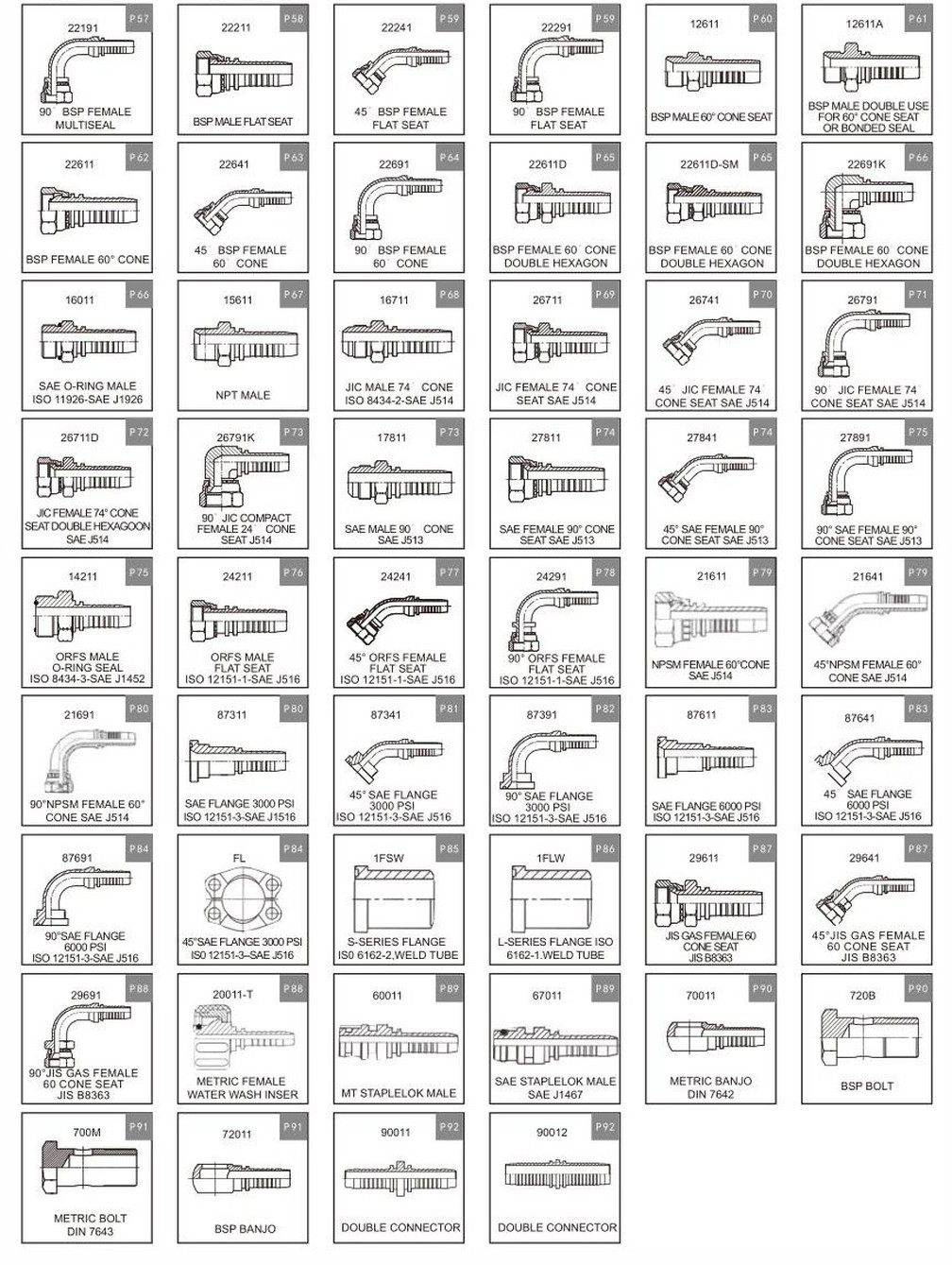

Q: Mipa hydraulic fittings chi hrang hrangte chu engte nge ni?
A: Type lar tak tak te chu:
JIC (Joint Industry Council): Degree 37-a thuhrilna thutna a awm.
NPT (National Pipe Tapered): A seal theihna tur thread tapered.
BSP (British Standard Pipe): Thread parallel emaw tapered emaw (BSPP/BSPT) a ni.
ORFS (O-ring face seal): Leak-proof connection atan O{{1}ring neiin hmai zau tak nei.
Metric: Thread te hian ISO/ DIN standard an zawm a.
Q: Engtin nge mipa hydraulic fitting dik tak ka thlan ang?
A: Ngaihtuah teh:
Thread chi/size (eg, 1/2" NPT, JIC #8).
Pressure rating (system mamawh ang chiah) a ni.
thil siam (steel, stainless steel, brass).
Hose leh hmanrua nena inmilna.
Q: Mipa hydraulic fittings-a leak awm hi engtin nge ka ven theih ang?
A: Thread te chu a faiin a chhe lo tih enfiah tur.
Thread sealant (NPT tan) emaw O-rings (Orfs tan) emaw hmang rawh.
Torque recommended-avoid over-Tightening ah khan tight rawh.
Q: Thread standard hrang hrang (eg, NPT leh BSP) ka mix thei em?
A: Ni lo, thread inzawmkhawm hian leak emaw, chhiatna emaw a thlen thei. Standard inang lo tak tak inzawmkhawm a nih chuan adapter hmang rawh.
Q: NPT leh NPTF thread te hi eng nge an danglamna?
A: NPT (National Pipe Tapered): Sealant a ngai.
NPTF (Dryseal): Sealant tel lova seal thei tura duan ni mahse himna atana hman fo.
Q: Mipa hydraulic fitting thread size hi engtin nge ka teh ang?
A: Caliper hmangin thread pawn lam diameter (OD) teh la, thread chart en rawh. Note pitch (Imperial tan inch khatah thread, metric tan mm).
Q: Mipa hydraulic fittings hi eng material nge siam?
A: Carbon steel: Cost-a tha, a chakna sang tak.
Stainless steel: Corrosion-A tuar thei lo.
Brass: Low-pressure, corrosive environment-a hman thin.
Q: Mipa fittings te pressure rating sang ber chu engzat nge ni ang?
A: Type/material a zirin a danglam (eg, JIC fittings hian 5,000+ PSI a handle thei). A siamtute specification en rawh.
Q: Mipa hydraulic fittings hi ka hmang leh thei ang em?
A: Ni e, a chhiat loh chuan. Thread leh sealing surface te chu hman nawn leh hmain wear/cracks te enfiah hmasa phawt ang che.
Q: Engvangin nge ka mipa fitting hi a lo chhuak zel?
A: Vibration: Lock washer emaw thread emaw hmang la-locking fluid hmang rawh.
Incorrect Torque: A siamtute specs zawm rawh.
Thread wear: Stripped a nih chuan thlak leh tur a ni.
Q: Khawiah nge high-quality male hydraulic fittings ka lei theih ang?
A: Certified hydraulic supplier emaw manufacturer emaw hnen atanga lei. Standard zawm a nih leh nih loh enfiah (SAE, ISO, DIN).
