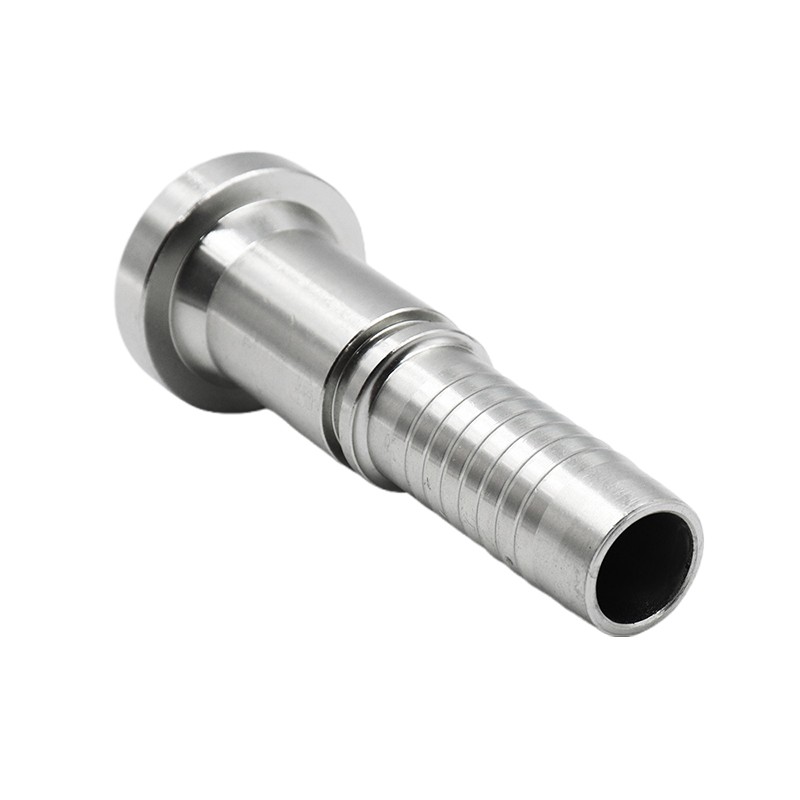

Hydraulic hose flange SAE hi high-performance hydraulic fitting a ni a, high-pressure hydraulic system-a proof connection him leh leak-PROOF AWM THIN A NI. SAE (Society of Automotive Engineers) standards zawm tura siam a nih avangin he flange hian industrial application mamawh tak takah a inmil theihna, a chhe thei lo, leh a rintlakna a siam a ni.
Specifications 1.1.
|
part no. |
flange size 1000 a ni. |
Hose Bore 1000 a ni. |

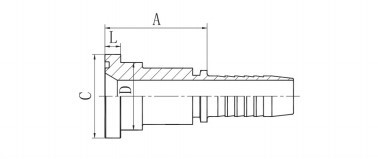

Dimension hrang hrang . |
||||
|
DN 10 a ni. |
THEH |
A |
C |
D |
L |
||
|
87311-08-08 |
1/2" |
12 |
08 |
46 |
30.2 |
24 |
6.73 |
|
87311-12-08 |
3/4" |
12 |
08 |
47 |
38.1 |
31.7 |
6.73 |
|
87311-12-10 |
3/4" |
16 |
10 |
48 |
38.1 |
31.7 |
6.73 |
|
87311-12-12 |
3/4" |
20 |
12 |
48 |
38.1 |
31.7 |
6.73 |
|
87311-12-16 |
3/4" |
25 |
16 |
49 |
38.1 |
31.7 |
6.73 |
|
87311-16-12 |
1" |
20 |
12 |
51 |
44.4 |
38 |
8 |
|
87311-16-16 |
1" |
25 |
16 |
52 |
44.4 |
38 |
8 |
|
87311-16-20 |
1" |
32 |
20 |
53 |
44.4 |
38 |
8 |
|
87311-20-16 |
1.1/4" |
25 |
16 |
57 |
50.8 |
43 |
8 |
|
87311-20-20 |
1.1/4" |
32 |
20 |
58 |
50.8 |
43 |
8 |
|
87311-24-20 |
1.1/2" |
32 |
20 |
68 |
60.3 |
50 |
8 |
|
87311-24-24 |
1.1/2" |
40 |
24 |
68 |
60.3 |
50 |
8 |
|
87311-32-24 |
2" |
40 |
24 |
70 |
71.4 |
62 |
9.53 |
|
87311-32-32 |
2" |
50 |
32 |
70 |
71.4 |
62 |
9.53 |
|
87311-40-40 |
2.1/2" |
64 |
40 |
76 |
84.1 |
74 |
9.53 |
Parameters/technical data a awm em?
|
Dik tak |
China ram Zhejiang-ah chuan a awm a. |
Delivery hun tur . |
Negotiable theih a ni . |
|
Certification 1000 a ni. |
GB/T19001-2016 IDT ISO9001:2015 ah hian a awm a. |
Packing a awm em . |
Export standard 100 a ni. |
|
Bungrua |
Carbon steel 1000 a ni. |
Warranty a awm em? |
Kum 1 . |
|
Pawisa pek hun tur . |
TT 10 a ni. |
MOQ 10 a ni. |
2000 |
|
Dinhmun |
Thar |
Rawng |
A rilru a buai em em a, a rilru a hah em em bawk a. |
Company chungchang .
A thatna te .
A chhe thei lo zawk .
High-strength steel emaw stainless steel emaw atanga siam a ni a, boruak khirh tak takah pawh long-performance rei tak a awm theih nan a enkawl a ni.
High-Pressure do theihna a ni.
Engineered to withstand hydraulic pressures (model a zirin 6,000 psi thleng), leak leh system a chhiat loh nan.
SAE & ISO zawm dan .
SAE J518 leh ISO 6162 standard a tlin a, hei hian khawvel puma hydraulic system nena inmil theihna a tichiang a ni.
Leak-Proof connection .
Precision-Machined sealing surface te hian fit tight, rintlak tak a siam a, fluid hloh leh downtime a ti tlem bawk.
Corrosion-Thil thlan theih loh .
Zinc-plated, phosphate-coated, emaw stainless steel variants-ah te a awm a, chu chuan wet emaw corrosive emaw a nih chuan a venghim thei a ni.
Installation leh enkawl awlsam .
Hmanhmawh taka inkhawm leh tihchhiatna atana ruahman, labor time tihtlem leh efficiency tihsan.
A hmanna hmun zau tak .
Industrial, construction, agriculture, marine, leh oil & gas hmanna atan a tha.
A chinfel theih dan tur .
Operational mamawh bik phuhrukna tur size, material leh pressure rating tam tak awm thei.
FAQ a ni.
Q: He flange hi eng pressure rating nge a nih?
A: Pressure rating hi model hrang hrangah a inang lo a, mahse kan standard flanges hian 6,000 psi thleng a handle tlangpui. Size leh material a zirin exact ratings te chu product specification ah en fo ang che.
Q: Eng material nge awm?
A: Kan offer a:
Carbon steel (standard, corrosion-a coatings do thei)
Stainless steel (a hmun khirh emaw, a chhe thei emaw tan) .
Alloy option dang pawh dil theih a ni .
Q: He flange hi ISO 6162 flanges nen a inmil em?
A: Ni e, kan SAE flanges te hi ISO 6162 code a flanges nena inthlak danglam theih tura siam a ni a, khawvel pum huapa inmil theihna tur a ni.
Q: Engtin nge size dik tak ka thlan ang?
A: Flanges hi size hrang hrang (eg, 1⁄2" atanga 2") a awm a. Flange size chu i hose inner diameter (ID) leh system mamawh nen inmil rawh. Kan sizing chart zawhfiah emaw, kan support team te biak emaw theih a ni.
Q: He flange hi hydraulic hose eng emaw nen ka hmang thei ang em?
A: SAE/ISO-compatible hoses nen paired a, crimp emaw assemble emaw dik taka crimp emaw a ni tur a ni. I hose specification nen a inmil em tih finfiah fo ang che.
Q: Engtin nge leak-proof connection ka neih theih ang?
A: O{{0}Rings emaw gasket dik tak (a tel emaw, a tarlan emaw) hmang rawh.
Pressure inang lo awm lo turin cross pattern-ah bolt te chu a rualin tight rawh.
Install hmain a chhiat leh chhiat loh enfiah hmasa phawt ang che.
Q: Custom flanges hi a awm em?
A: Ni e! Application mamawh dan azirin custom size, material, leh pressure rating kan pe thin. Kan engineering team te chu special request nei turin zawhfiah rawh.
Q: Eng industry nge he flange hi hman tlanglawn?
A: In sak & mining (excavator, loader) .
Agriculture (tractor, harvesters) te .
Oil & Gas (drilling rig, pipeline hmanga siam) te pawh a awm bawk.
Marine & tuipui kamah .
Industrial machinery (hydraulic press, injection molding) te pawh a awm bawk.
