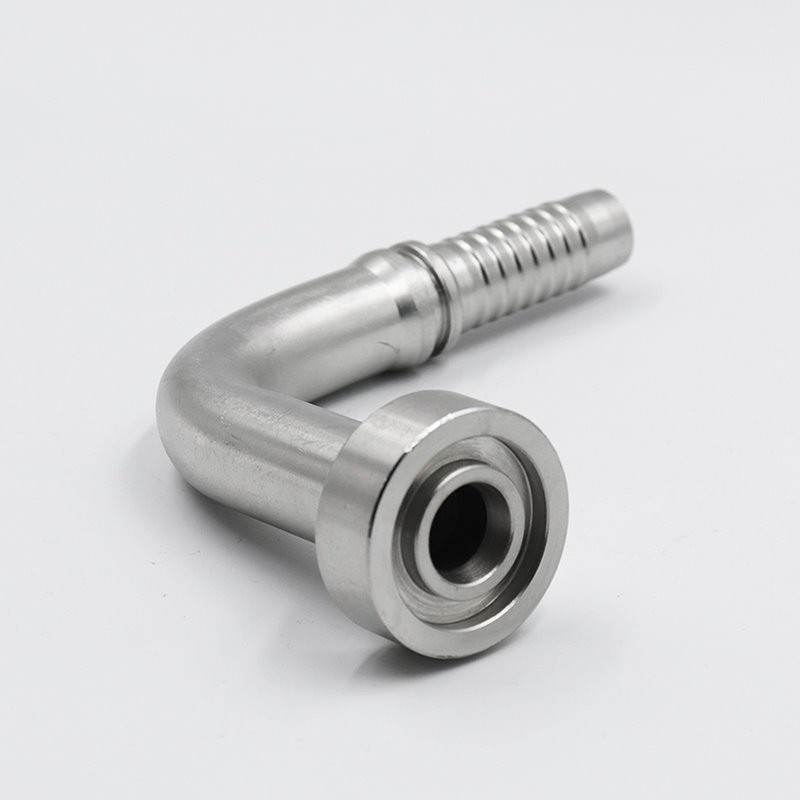

90℃elbow SAE flange hi precision-engineered hydraulic fitting a ni a, high-pressure, leak-proof connections tight space-a directional change mamawhna hmuna siam a ni. SAE J518 leh ISO 6162 standard-a siam a nih avangin, he elbow flange hian hydraulic hmanna tur mamawhnaah system integrity a vawng reng chungin flow efficiency tha ber a pe a ni.
Specifications 1.1.
|
part no. |
flange size 1000 a ni. |
Hose Bore 1000 a ni. |
Dimension hrang hrang . |
|||||
|
DN 10 a ni. |
THEH |
A |
C |
D |
H |
L |
||
|
87691-08-08 |
1/2" |
12 |
08 |
41 |
31.7 |
24 |
48 |
7.75 |
|
87691-12-10 |
3/4" |
16 |
10 |
56.5 |
41.3 |
32 |
56.5 |
8.76 |
|
87691-12-12 |
3/4" |
20 |
12 |
66.2 |
41.3 |
32 |
66 |
8.76 |
|
87691-16-12 |
1" |
20 |
12 |
66.2 |
47.6 |
38 |
69 |
9.53 |
|
87691-16-16 |
1" |
25 |
16 |
78 |
47.6 |
38 |
74.5 |
9.53 |
|
87691-16-20 |
1" |
32 |
20 |
91.5 |
47.6 |
38 |
85.5 |
9.53 |
|
87691-20-16 |
1.1/4" |
25 |
16 |
78 |
54 |
44 |
78.5 |
10.29 |
|
87691-20-20 |
1.1/4" |
32 |
20 |
91.5 |
54 |
44 |
89.5 |
10.29 |
|
87691-24-20 |
1.1/2" |
32 |
20 |
91.5 |
63.5 |
51 |
94.5 |
12.57 |
|
87691-24-24 |
1.1/2" |
40 |
24 |
109.4 |
63.5 |
51 |
108 |
12.57 |
|
87691-32-24 |
2" |
40 |
24 |
109.4 |
79.4 |
67 |
116 |
12.57 |
|
87691-32-32 |
2" |
50 |
32 |
131.8 |
79.4 |
67 |
136.3 |
12.57 |
Parameters/technical data a awm em?
|
Dik tak |
China ram Zhejiang-ah chuan a awm a. |
Delivery ni . |
Negotiable a ni a . |
|
Certification 1000 a ni. |
GB/T19001-2016 IDT ISO9001:2015 ah hian a awm a. |
Packing a awm em . |
Export standard 100 a ni. |
|
Bungrua |
Carbon steel 1000 a ni. |
Warranty a awm em? |
Kum 1 . |
|
Pawisa pek hun tur . |
Negotiable a ni a . |
MOQ 10 a ni. |
5 |
| Salt spray test a ni a. | 72+Darkar 1000 a ni. |
Rawng |
White emaw yellow emaw a ni . |
Company chungchang .
A thatna te .
Flow efficiency tha zawk .
Optimized internal bore design hian standard elbows nena khaikhin chuan turbulence chu 30% in a tihhniam a ni.
Precision radius hian hydraulic efficiency sang ber atan laminar flow a vawng reng a ni.
Computational Fluid Dynamics (CFD) hmanga siam a ni a, a design pawh a tha hle.
Pressure performance tihchak a ni .
Standard SAE mamawh aiin pressure rating 20% zetin a sang zawk
Burst pressure test a ni a, 4x working pressure a ni.
Extreme pressure cycling hnuaiah seal integrity a vawng tha .
Space-Precision chhanhim thei .
90℃angle dik tak, ±0.5℃tolerance hmanga routing dik tak neih theihna tur a ni.
Compact design hian 40% thleng space a humhim thei a, stacked fittings a ni.
port orientation hrang hrang a awm thei .
Leak-proof guarantee a ni.
Proprietary triple-Seal technology (primary, secondary, leh backup seals) te hi a ni.
Micro-Sealing surface zawh tawh (Ra < 0.4μm) a ni.
Pre-installed high-performance HNBR O-Rated -40℃F atanga +250℃F thlenga rated
A chhe thei lo .
Forged Construction (Cast ni lo) chu a chakna sang ber a ni.
316 stainless steel option a awm a, 3x corrosion resistance a awm bawk.
Impact-Desistant design hian vibration leh shock load a tuar thei lo.
Khawvel pum huapa zawm .
SAE J518, ISO 6162, leh DIN Standards te chu certified a ni.
Mill Test Certificate hmanga Material Traceability kimchang .
Reach leh ROHS Compliant Materials .
Installation lama a thatna te .
Laser-Etched identification marks hmanga awlsam taka orientation siam theih a ni.
Pre-Alignment guide hmanga siam a ni a, a rang thei ang bera dah theih a ni.
Elbow assemblies pangngai aiin 50% a chak zawk
Customization tih theih dan tur .
Size 3/8" atanga 3" thleng a awm bawk.
Duplex steel leh titanium te bakah thil bik
Custom port configuration leh bolt pattern te a awm bawk.
Quality assurance .
100% pressure test hmain test a ni.
Dimensional verification chu CMM enfiah a ni.
Batch traceability leh serial number danglam tak a awm bawk.
FAQ a ni.
Q: I 90℃elbow flange hian eng standard nge a zawm?
A: Kan elbow flanges te hi an inhmukhawm a:
SAE J518 (Code 61 & 62) a ni.
ISO 6162 (series 1 & 2) a ni.
DIN 20066 Standards .
NFPA T3.4.7R1 A chi hrang hrang a awm a.
Q: Eng pressure rating nge awm?
A: Standard pressure ratings te chu:
3000 psi (207 bar) a ni a, a man hi a to hle.
6000 psi (414 bar) a sang-Pressure series a ni.
Custom design 10,000 psi (690 bar) thleng a awm thei
Q: Eng material nge i pek thin?
A: Standard material option hrang hrang:
Carbon steel leh zinc plating a awm bawk.
304/316 a ni a, a rimtui hle.
Thil pawimawh bik:
Duplex stainless steel a ni.
Titanium alloy te pawh a awm bawk.
Nickel-a awm a ni a, superalloys a awm bawk.
Q: Engtin nge size dik tak ka thlan ang?
A: Thil pawimawh thlan tur:
Hose/Tube chhunga awm chu a chhung lam diameter nen a inmil em?
System working pressure ngaihtuah rawh .
Flow rate mamawhna account .
Space constraints te endik .
Kan engineer te hian a thlawna sizing assistance an pe thin .
Q: Eng sealing method nge awm?
A: Sealing option hrang hrangte chu:
O{{0}Ring Face Seal (ORFs) - a tam ber .
Flat face ah chuan spiral wound gasket a awm a.
Metal-to-Metal seal chu a dinhmun a tha em em a ni.
Custom sealing solutions a awm .
Q: I elbows te hi brand dang nen an inthlak danglam thei em?
A: Ni e, kan 90℃elbows te hi:
Standard SAE/ISO dimensions vawng reng rawh .
Compliant fittings nen pawh inthlak danglam theih a ni
Critical dimensions verify turin kan rawt a ni .
Q: Custom orders atan hian lead time engzat nge ni ang?
A: Standard lead hun:
Stock Items: Darkar 24-48 chhunga thawn chhuah
Standard Custom: Ni 10-15 chhunga hnathawh tur
Thil bik: Kar 3-4 chhung
Expedited services te pawh a awm .
Q: Installation kaihhruaina i pe em?
A: Ziakna zau tak a awm a, chungte chu:
Step-by-Step installation hmanga siam a ni.
Torque Specifications rawt a ni .
Alignment hman dan dik tak .
Seal lubrication rawtna siam .
Video tutorials a awm a.
Q: Eng certification nge i neih?
A: Kan certification-ah hian:
ISO 9001:2015 Quality System a ni a, a man pawh a tlawm hle.
PED 2014/68/EU zawm a ni a, a hlawhtling hle.
Atex chu puak thei thil awmna tur a ni.
ABS Marine phalna lak a ni.
Q: Eng maintenance nge mamawh?
A: Enkawlna tha ber:
Kum tin hmuh theiha enfiahna .
Torque hian darkar 500 danah a check thin .
Kum 3 danah seal thlak thin .
Kum 7 hnuah a thlakna tur kimchang .
