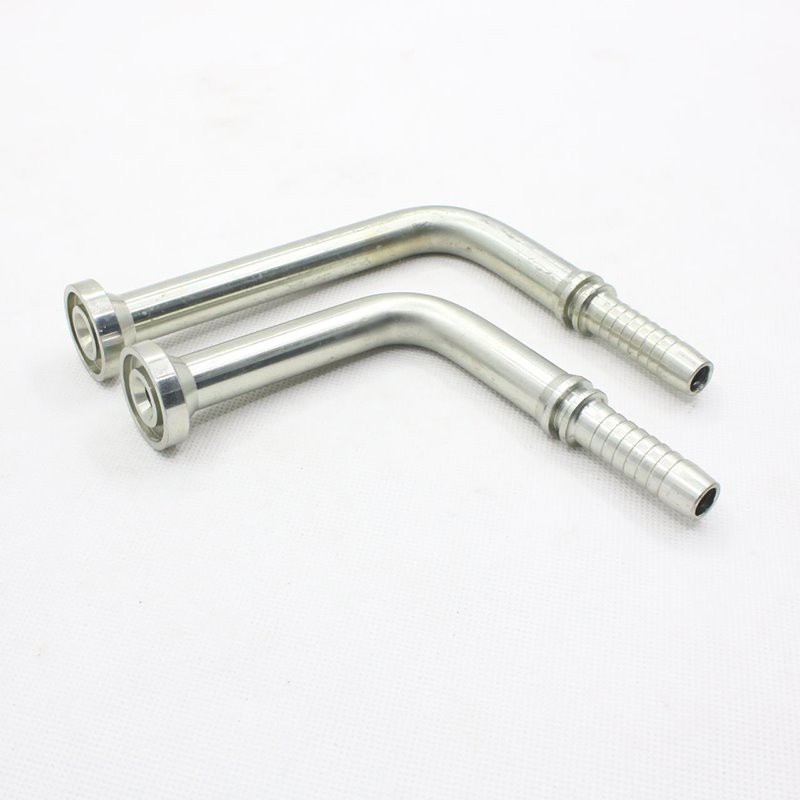

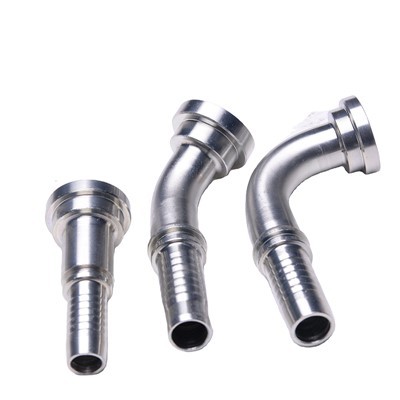

SAE hydraulic pipe flanges te hi an sang-Performance connection components te chu secure, leak-proof fluid transfer na tur atana siam a ni a, hydraulic system mamawh tak takah a awm a ni. SAE J518 leh ISO 6162 standards-a siam a nih avangin, heng flanges-te hian industry hrang hranga high-pressure application-a performance rintlak tak a siam a ni.
Specifications 1.1.
|
part no. |
flange size 1000 a ni. |
Hose Bore 1000 a ni. |

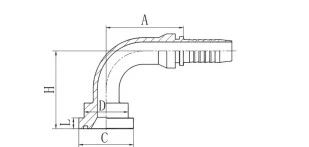

Dimension hrang hrang . |
|||||
|
DN 10 a ni. |
THEH |
A |
C |
D |
H |
L |
||
|
87641-08-08 |
1/2" |
12 |
08 |
58.9 |
31.7 |
24 |
24 |
7.75 |
|
87641-08-12 |
1/2" |
20 |
12 |
74.9 |
31.7 |
24 |
27.5 |
7.75 |
|
87641-12-10 |
3/4" |
16 |
10 |
72.5 |
41.3 |
32 |
28.2 |
8.76 |
|
87641-12-12 |
3/4" |
20 |
12 |
79.2 |
41.3 |
32 |
31.8 |
8.76 |
|
87641-16-16 |
1" |
25 |
16 |
90.2 |
47.6 |
38 |
34.7 |
9.53 |
|
87641-20-20 |
1.1/4" |
32 |
20 |
103.8 |
54 |
44 |
41.5 |
10.29 |
|
87641-24-20 |
1.1/2" |
32 |
20 |
105.8 |
63.5 |
51 |
45.1 |
12.57 |
|
87641-24-24 |
1.1/2" |
40 |
24 |
116.2 |
63.5 |
51 |
45.5 |
12.57 |
|
87641-32-24 |
2" |
40 |
24 |
125.4 |
79.4 |
67 |
54.7 |
12.57 |
|
87641-32-32 |
2" |
50 |
32 |
135.7 |
79.4 |
67 |
52.7 |
12.57 |
Parameters/technical data a awm em?
|
Dik tak |
China ram Zhejiang-ah chuan a awm a. |
Delivery hun tur . |
Negotiable theih a ni . |
|
Certification 1000 a ni. |
GB/T19001-2016 IDT ISO9001:2015 ah hian a awm a. |
Packing a awm em . |
Export standard 100 a ni. |
|
Bungrua |
Carbon steel 1000 a ni. |
Warranty a awm em? |
Kum 1 . |
|
Pawisa pek hun tur . |
TT 10 a ni. |
MOQ 10 a ni. |
2000 |
|
Dinhmun |
Thar |
Rawng |
A rilru a buai em em a, a rilru a hah em em bawk a. |

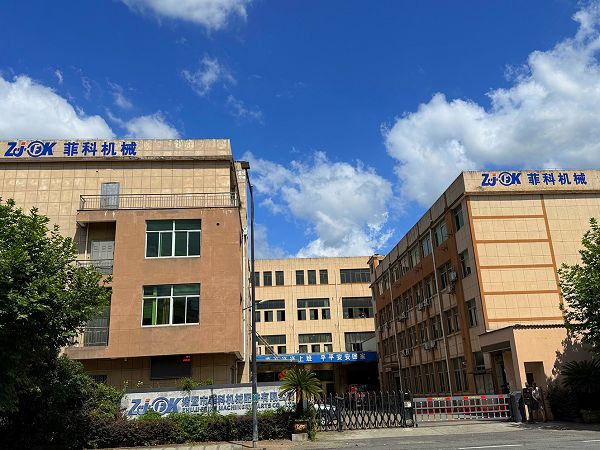

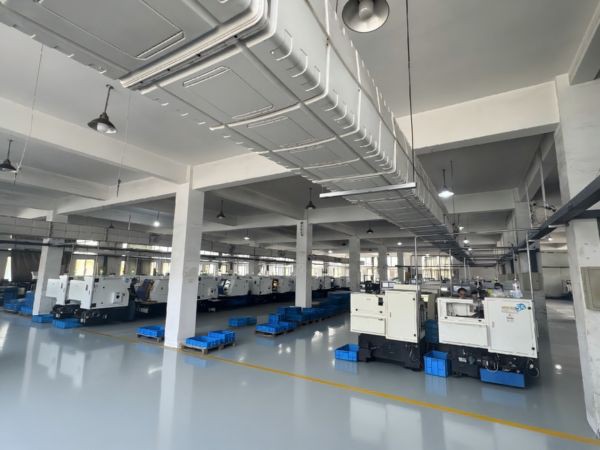

Company chungchang .
A thatna te .
Pressure performance tluk loh .
10,000 psi burst pressure 10,000 thleng tuar thei turin engineer a ni.
Standard SAE mamawh aiin pressure rating 30% zetin a sang zawk
Extreme pressure cycling condition hnuaiah seal integrity a vawng reng a ni.
Precision siam thatna tha ber .
CNC machine hmanga siam a ni a, ±0.005" tolerance a ni a, a tha ber chu a tha em em a ni.
Forged Construction (Cast ni lo) chu chakna sang zawk nei turin a siam a ni.

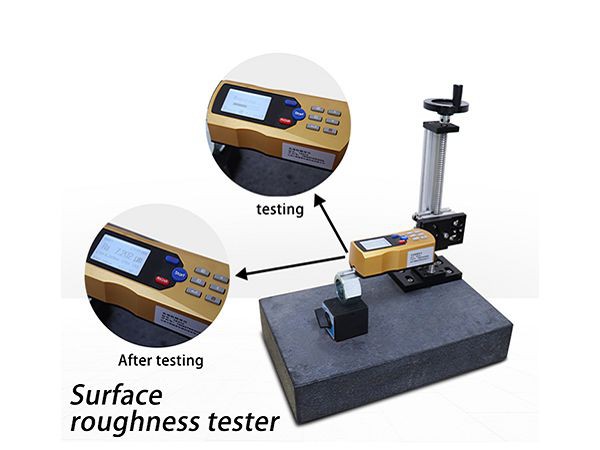

Micro-sealing surface zawh tawh (ra < 0.4μm) a ni.
Material quality tha zawk .
Aircraft-Grade carbon steel leh fatigue resistance tihchakna
316L Stainless Steel option a awm a, 5x corrosion resistance a awm bawk.
Mill Test Certificate hmanga Material Traceability kimchang .
Leak-proof guarantee a awm lo.
Proprietary quad-SealTM Technology (primary, secondary, leh dual backup seals) te hi a awm a.
Pre-installed high-performance FKM O{{2}Rings (-65℃F atanga +400℃f) dah a ni.
100% pressure test a ni a, 1.5x a thawk thei a ni.
Industry-a chhe thei lo tur a ni.
Industry standard aiin 50% in service life a nei rei zawk
Abrasive fluid hmanna atana special hardened surface te
Impact-High-vibration environment-a design do thei lo
Khawvel pum huapa zawm & certification .
SAE J518, ISO 6162, leh ASME B16.5 te hnenah certified a ni.
PED 2014/68/EU zawm tur a ni.
ABS leh DNV-GL Marine phalna lak theih a ni
Installation a thatna te .
Laser-Etched identification marks hmanga awlsam taka orientation siam theih a ni.
Pre-Alignment guide hmanga inzawmkhawm a ni.
Flange pangngai aiin 40% zetin installation a chak zawk
Customization theihna .
Size 1/4" atanga 6" thleng a awm bawk.
Thil chi hrang hrang, Monel, Hastelloy, leh Titanium te pawh a tel.
Custom port configuration leh pressure ratings te pawh a awm bawk.

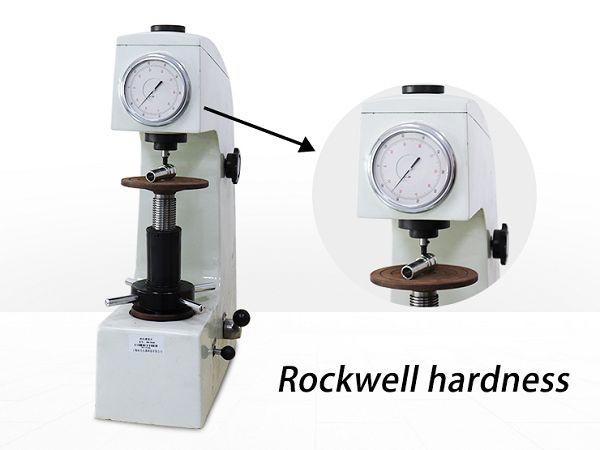

Rigorous quality assurance .
100% dimensional verification chu CMM nen a ni.
Ultrasonic testing a awm em tih enfiah a ni.
Batch traceability leh serial number danglam tak a awm bawk.
Technical lama puihna tluk loh .
Application engineering team inpekna nei tak an ni.
A thlawna hydraulic system thlirletna .
On-Site installation training neih theih a ni.
FAQ a ni.
Q: I SAE flanges hian eng standard nge a zawm?
A: Kan flanges te hi an inhmu a:
SAE J518 (Code 61 & 62) a ni.
ISO 6162 (series 1 & 2) a ni.
DIN 20066 a ni a.
ASME B16.5 (a dilna angin)
Q: Eng pressure rating nge awm?
A: Standard pressure class hrang hrangte:
3000 psi (207 bar) a ni a, a man hi a to hle.
6000 psi (414 bar) a sang-Pressure series a ni.
Custom design hrang hrang 15,000 psi (1034 bar) thleng a ni.
Q: Eng material nge i pek thin?
A: Standard materials: 1.1.
AISI 4130 Carbon steel 1000 a ni.
304/316 a ni a, a rimtui hle.
Alloy bikte:
Duplex 2205 a ni.
Inconel 625 a ni.
Titanium chuan Grade 5 a nei a.
Q: Engtin nge flange size dik tak ka thlan ang?
A: Key thlan dan parameters:
Pipe nominal size (NPS) 1.1.
System hnathawh pressure .
Flow mamawh (GPM) .
Temperature 1000 a ni.
Kan engineer te hian sizing consultation a thlawnin an pe thin .
Q: Eng sealing option nge awm?
A: Sealing configuration hrang hrangte:
O{{0}chuan hmai seal (Orfs) - standard a ni.
RTJ (Ring Type Joint) a ni.
Flat face leh spiral wound gasket a awm a.
Metal-to-High-Temp apps te tan metal seal a ni.
Q: I flanges te hi brand dang nen an inthlak danglam thei em?
A: Ni e, kan flanges te hi:
SAE/ISO Dimensional zawm kim zel tur a ni.
100% chu standard design nen an inthlak thei a ni.
Tolerance-controlled mating surface te pawh telh bawk ang che.
Q: Custom order atan eng nge i lead time?
A: A siam chhuah hun tur:
Stock Items: Darkar 24 chhunga thawn chhuah
Standard Custom: Hnathawh Ni 5-7
Alloy bik: Kar 2-3 chhung
Emergency production slot te pawh a awm bawk.
Q: Installation support i pe em?
A: Support package kimchang tak:
Digital Torque Calculator hmanga siam a ni.
3D installation animation te pawh a awm bawk.
Field dahna tur kaihhruaina te .
On-Site technician dispatch (a duh chuan) a ni.
Q: Eng certification nge i vawn reng?
A: Tuna certification awm mekte:
ISO 9001:2015 (QMS) a ni a, a man pawh a tlawm hle.
API Q1 (Oil & Gas) a awm a.
PED 2014/68/EU chuan Category IV a nei a.
DNV-GL Tuipui lam .
Q: Eng maintenance nge recommend a nih?
A: Invenna enkawlna: 1.1.
Kum tin torque verification .
Biennial seal enfiahna .
Kum 5 chhung atan ultrasonic test a ni.
Cycle 50,000 hnuah thlak danglam a ni
